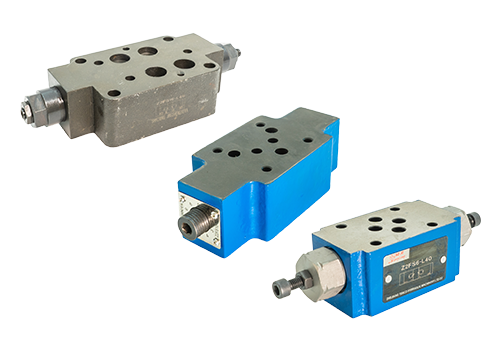

Z2FS16 Z2FS10 Z2FS6 Superimposed Throttle Valve
The superimposed throttle valves of Z2FS16, Z2FS10, and Z2FS6 are hydraulic control components launched by LeZo Le-HydrauliX (relying on Bosch Rexroth technology). The following is a detailed introduction:
1. Product Overview

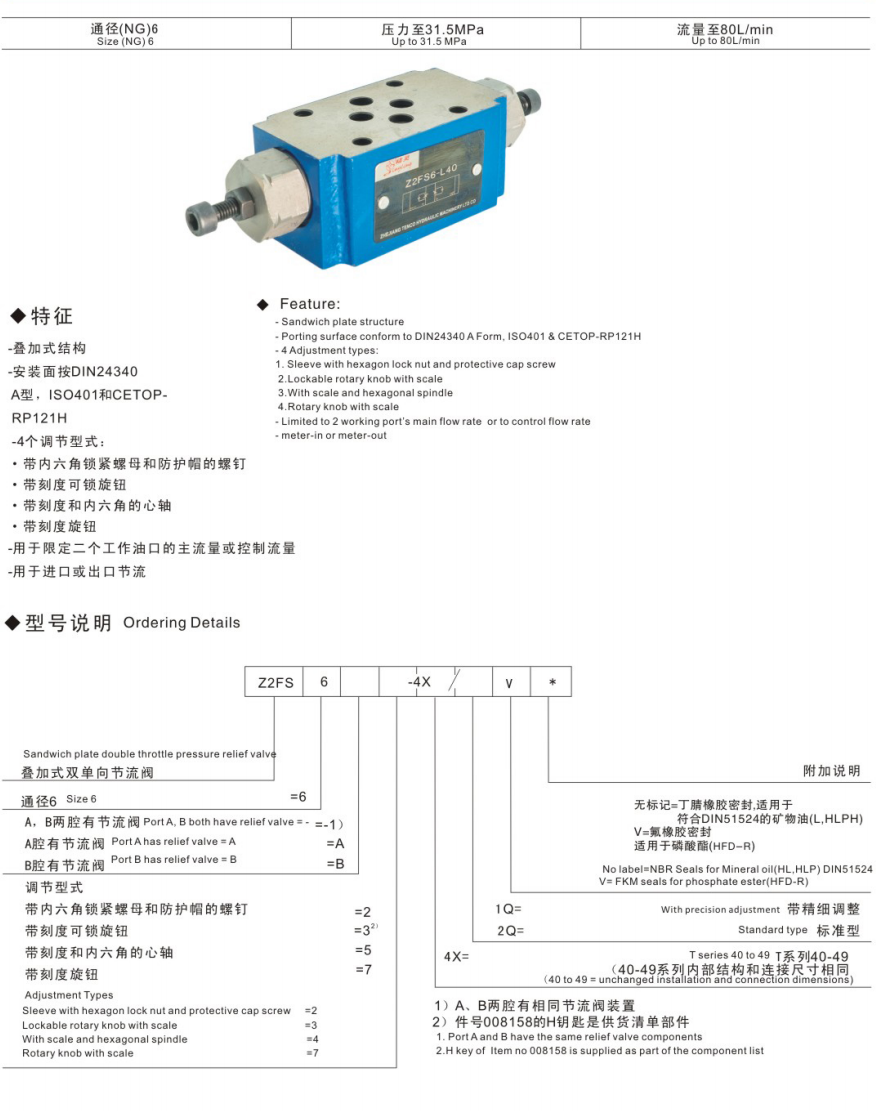

Model and diameter Z2FS6: diameter 6mm, suitable for small hydraulic systems.

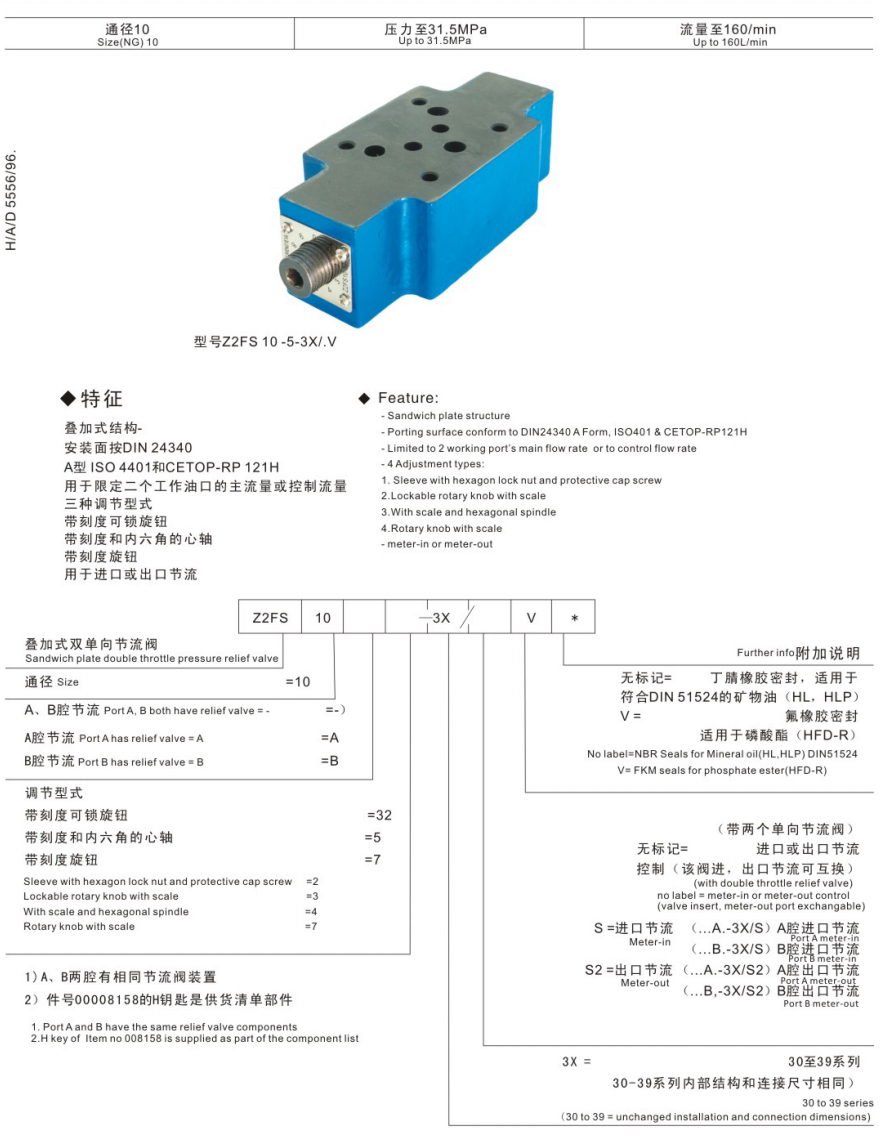

Z2FS10: The diameter is 10mm, and the flow range is wider.

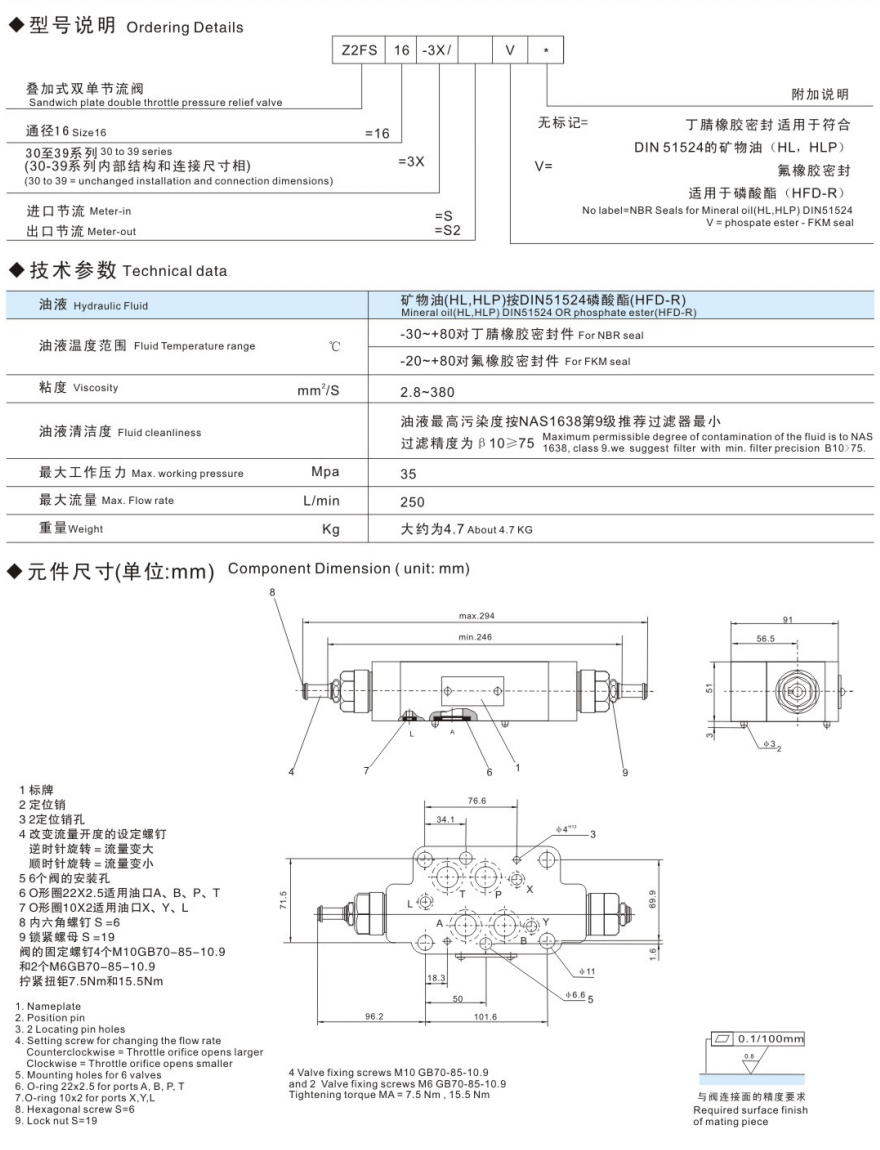

Z2FS16: Diameter 16mm, suitable for medium and large hydraulic systems.
Structural features are superimposed, which can be directly superimposed on the directional valve, saving installation space.
The dual one-way throttling function allows the oil to throttle in a single direction and freely flow in reverse.
Flow range: Z2FS6 flow rate is about 360L/min (some models), Z2FS10 flow rate is 160L/min, Z2FS16 flow rate is 250L/min (some models).
Operating temperature: -30℃ to +80℃ (nitrile rubber seal), -20℃ to +80℃ (fluoroelastic rubber seal).

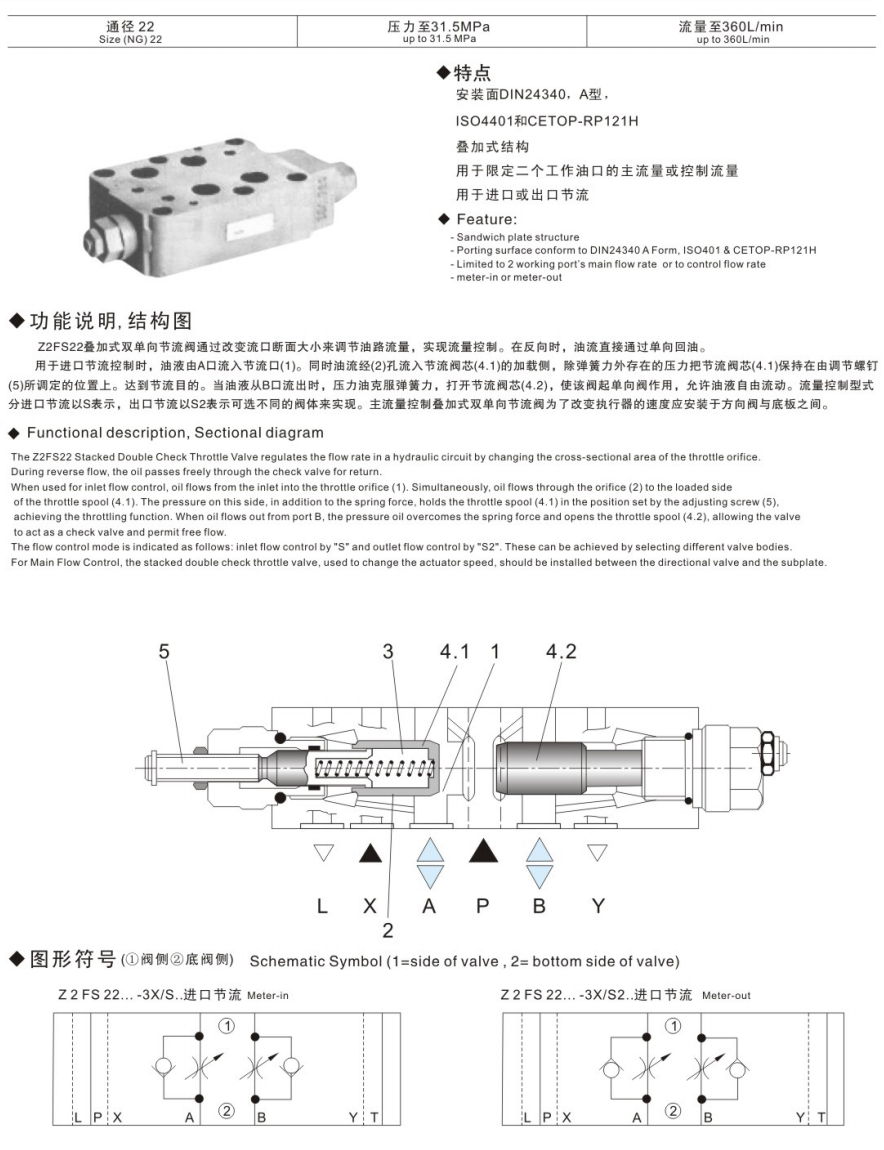

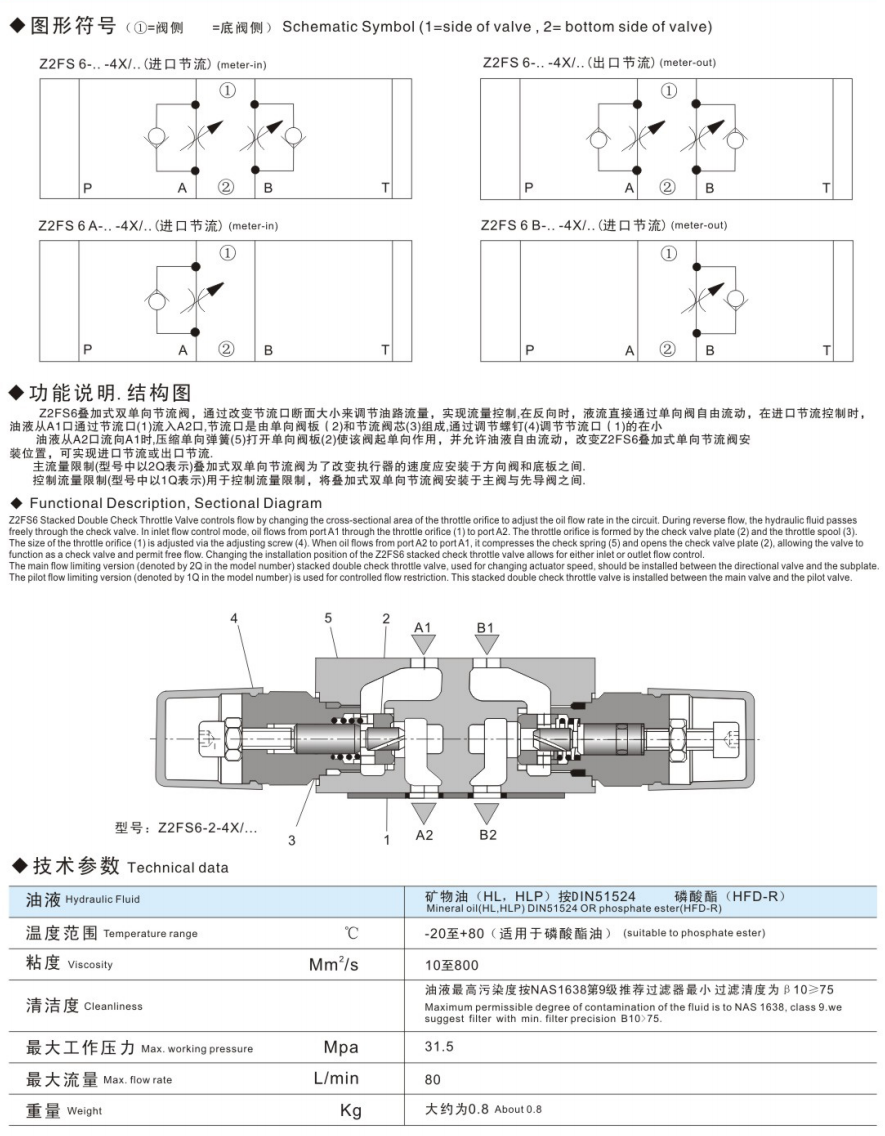

2. Working principle

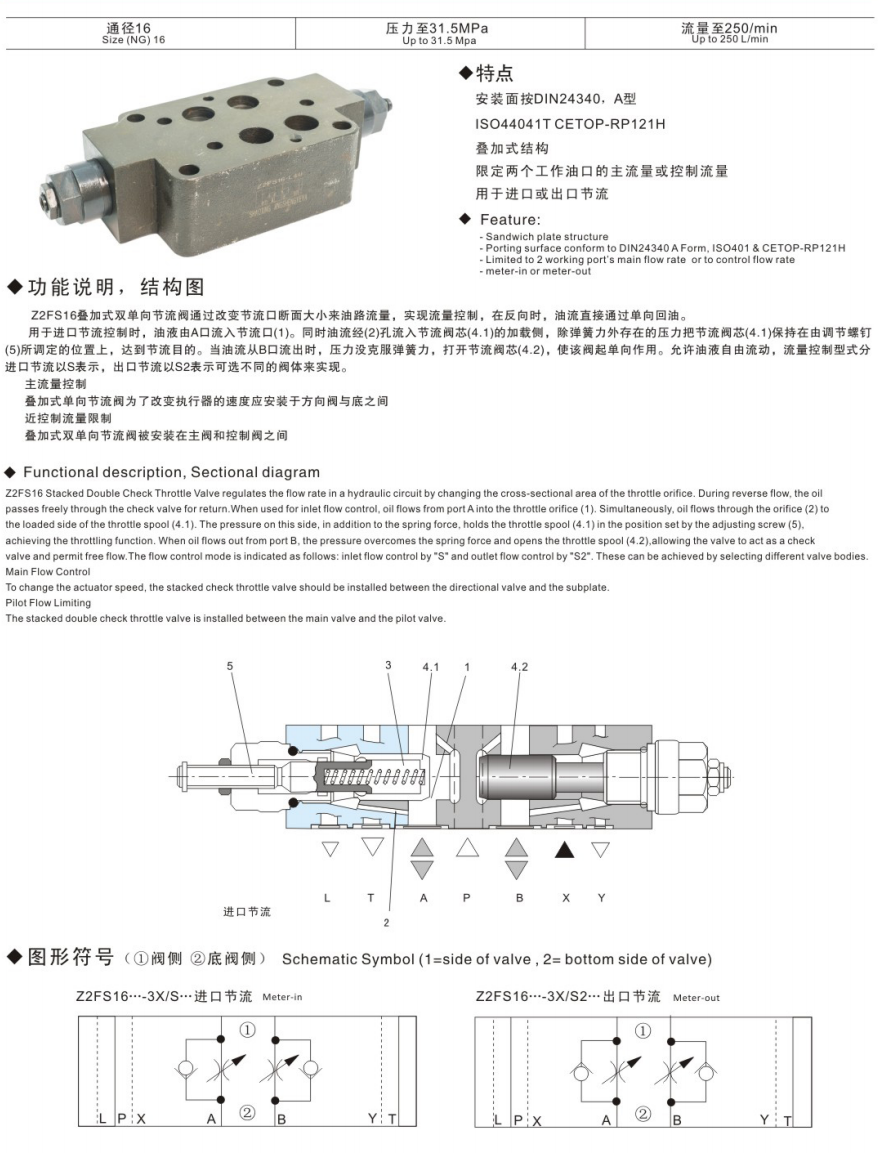

The throttling function adjusts the position of the throttling valve core, changes the area of the throttling port, and accurately controls the oil flow.
Suitable for hydraulic systems that require stable flow rates, such as excavators, loaders, etc.
When the one-way flows in the reverse direction, the oil flows freely through the one-way valve to avoid system back pressure.
III. Application areas
Construction machinery: hydraulic system for excavators, loaders, cranes and other equipment.
Agricultural machinery: hydraulic transmission systems such as tractors and harvesters.
Industrial equipment: hydraulic power systems such as injection molding machines, die casting machines, machine tools.
Aerial work platform: controls lifting, telescopic and other actions.
4. Product Advantages
High-precision control: Accurate flow control by adjusting the throttle area.
Compact structure: the superimposed design saves installation space and facilitates system integration.
Strong durability: high-strength materials and advanced sealing technology are used to adapt to harsh working conditions.
Easy to maintain: modular design, easy to disassemble and replace.
