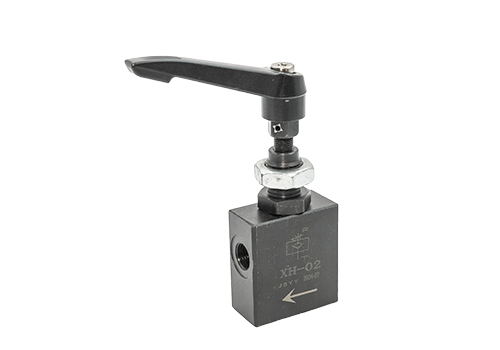

XH-02 Gloss Valve
The XH-02 shut-off valve may be a specific model shut-off valve product. The following is introduced from the aspects of product characteristics, application scenarios, technical parameters and purchasing suggestions:
1. Product Features
Structural features: The opening and closing part form is adopted: the plug-shaped valve disc is equipped with a flat or conical surface, and the valve disc moves in a straight line along the center line of the fluid.
Valve stem form: supports lifting rod type (valve stem lifting, handwheel does not lift) or lifting rotating rod type (handwheel and valve stem rotate and lift synchronously).
Sealing design: Forced sealing structure, pressure is required when closing to ensure that there is no leakage on the sealing surface.
Operational advantages High opening and closing efficiency: short working stroke and short opening and closing time, suitable for rapid cutting or regulating fluid.
Strong sealing performance: the friction between the sealing surfaces is small and the life span is long, suitable for scenarios with high sealing requirements.
Convenient maintenance: simple structure, convenient manufacturing and maintenance, reducing operation and maintenance costs.
Material and suitable valve body materials: can be selected from WCB, ZG1Cr18Ni9Ti, CF8 (304), CF8M (316), etc., suitable for water, steam, oil, nitric acid, urea and other media.
Temperature range: Applicable temperature is -196℃ to 700℃, covering low-temperature to high-temperature working conditions.
Pressure level: Nominal pressure PN1.0-16.0MPa, meeting medium and high pressure demand.
2. Application scenarios
Industrial manufacturing industries such as petroleum, chemical industry, metallurgy, and energy are used to control the flow of fluid in pipelines and ensure production safety.
The refining process controls the flow of crude oil, and the chemical reaction controls the proportion of raw materials.
Municipal water supply tap water supply system is used to cut off the water flow during branch pipeline maintenance to ensure normal water use for other users.
The fire protection system fire water tank or water tank outlet should be closed during a fire to ensure the fire protection system responds quickly.
Heating and air conditioning adjust the flow of hot or cold water, control the indoor temperature, and improve comfort.
The oil and gas transmission pipeline is cut off urgently to prevent leakage from expanding and ensure the safety of energy transmission.
