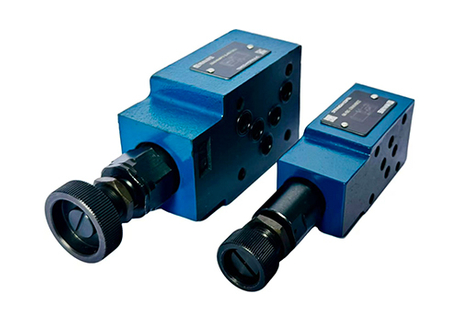

What are the advantages of ZDB10V stacked relief valve?

The core advantages of ZDB10V stacked relief valve are as follows:

1. ‌Compact structure and easy integration‌Adopting
   a stacked design, the mounting surface complies with DIN 24340 Type A and ISO 4401 standards. No additional connecting pipelines are required. It can be directly stacked between valve groups, greatly reducing the installation space, reducing the risk of oil leakage and vibration, and making the system integration more efficient.

2. ‌Strong performance adaptability‌The
   maximum working pressure can reach 315bar under the diameter of 10 specifications, and the maximum flow rate is 100L/min. It covers four pressure ranges of 50bar, 100bar, 200bar, and 315bar. It supports 6 different effective flow directions and can flexibly adapt to the pressure regulation needs of various hydraulic systems.

3. ‌Wide working condition compatibility‌Supports
   a variety of working media such as mineral oil and phosphate ester, and is suitable for a wide temperature range of -30℃~+80℃. The oil pollution tolerance can reach NAS 1638 level 9, and it can still operate stably under harsh working conditions such as engineering machinery and metallurgical equipment.

4. ‌Convenient adjustment and maintenance‌Provides various adjustment forms such as knobs and adjusting bolts with protective covers, which are simple to operate. The core components adopt a modular design, and maintenance and replacement can be completed without disassembling the
   entire valve group, greatly reducing operation and maintenance costs.

5. ‌Stable and reliable operation‌
   It adopts a pilot-operated overflow structure. The main valve and the pilot valve work separately and cooperate. The pressure regulation deviation is small, the pressure control accuracy is high, the dynamic response is fast, the seal wear rate is low under long-term use, and the service life is much better than the direct-acting overflow valve of the same specification.
