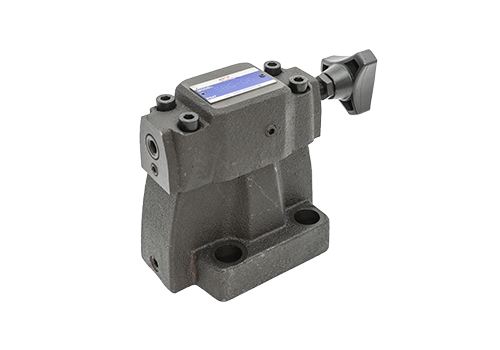

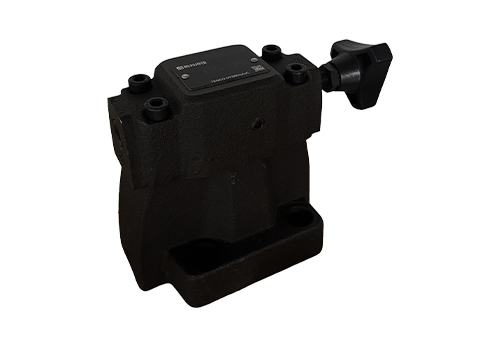

SBG-06 Relief Valve
SBG-06 relief valve is a high-performance hydraulic control component produced by well-known manufacturers. It is widely used in various hydraulic systems. The following is a detailed introduction to this product:
1. Product Overview
Model Description: The 'SBG' in SBG-06 represents the product series, and the '06' usually indicates the diameter specification (such as 25 diameter, i.e. 3/4 inch).
Type: Pilot type relief valve, with low noise characteristics, belongs to a type of pressure control valve.
Function: Used to control the constant pressure of the hydraulic system, prevent the system pressure from exceeding the set value, and plays a safe and protective role.

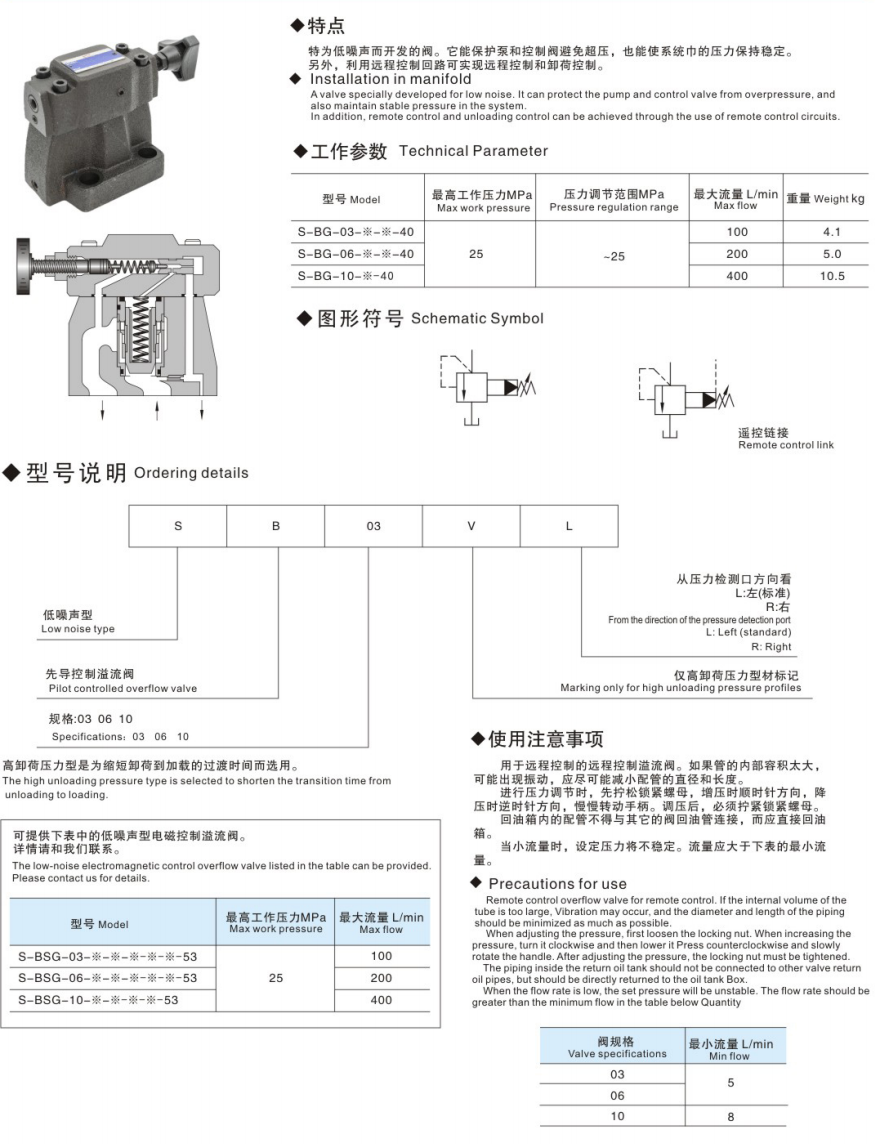

2. Technical parameters
Pressure Adjustment Range: Generally, multiple adjustment range options are provided, such as 7-70, 35-140, 70-250 (in units may be kgf/cm² or MPa) to meet the pressure requirements of different systems.
Flow: The flow rate can reach 200L/min (or corresponding unit), the specific value depends on the product specification.
Weight: about 11.3kg (or corresponding unit), the specific weight may vary depending on the product configuration.
3. Product Features
Low noise design: adopts a special design to maintain low noise performance in the entire pressure zone, suitable for occasions where there are strict requirements for noise.
High-precision control: By adjusting the knob or handle, the pressure of the system can be accurately controlled to ensure stable operation of the system.
Various installation methods: Supports various installation methods such as plate type and thread type, which facilitates users to choose according to actual needs.
Good sealing performance: Use high-quality sealing materials to ensure that good sealing performance can be maintained under high pressure and high temperature environments.
IV. Application areas
SBG-06 relief valve is widely used in various hydraulic systems such as engineering mining, aerospace, metallurgy, electricity, automobiles, steel, coal, papermaking, petrochemical, water conservancy, and marine machinery, providing reliable pressure control solutions for equipment in these industries.
V. Use and Maintenance
Use: Before use, please make sure to install and debug correctly according to the requirements of the product manual. During use, the working status of the overflow valve should be checked regularly to ensure its normal operation.
Maintenance: Clean and maintain the overflow valve regularly, check whether the seal is worn or aging, and replace it in time if necessary. At the same time, attention should be paid to maintaining the cleanliness of the hydraulic oil to prevent impurities from entering the interior of the overflow valve and affecting its performance.
