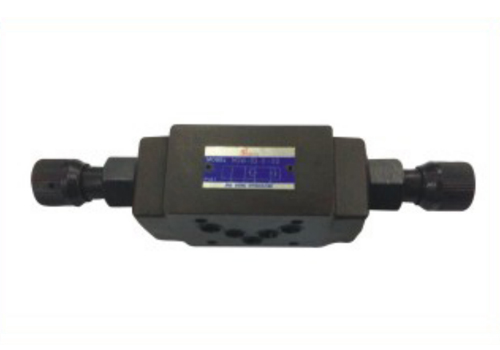

MSW-03 Superimposed One-Way Throttle Valve
MSW-03 superimposed one-way throttle valve is a hydraulic control element that integrates the functions of a one-way valve and a throttle valve, suitable for scenarios where flow and direction are precisely controlled in hydraulic systems. The following is a detailed description of this product:
1. Product Features
The superimposed design adopts a superimposed installation method, which can be directly superimposed on the hydraulic valve block without additional piping connections, reducing installation space and oil leakage risks.
Compact structure, easy to integrate system and modular design.
The one-way throttling function combines the one-way valve and throttling valve functions to achieve the dual role of one-way flow and throttling adjustment.
Allows free flow of oil in one direction (check-way valve function) and limits flow through the throttle port when flowing in reverse (choke-way valve function).
High-precision control throttle ports are designed accurately, allowing stable flow regulation, and are suitable for hydraulic systems that require precise control of speed or pressure.
Durability and reliability use high-strength materials and precision processing technology to ensure the stable operation of the product under high-voltage and high-frequency conditions.
Excellent sealing performance, effectively preventing internal and external leakage.
Easy to maintain Modular design is easy to disassemble and replace, reducing maintenance costs.
2. Technical parameters
Parameter specification description
Model MSW-03
Nominal diameter 3/8' (can be customized according to requirements)
Media temperature -20℃ to +80℃ (suggested range of use)
Medium mineral oil, hydraulic oil, etc.
Installation method superimposed installation
3. Working principle
One-way flow When the oil flows from port A to port B, the check valve opens and the oil passes freely.
When the oil flows from port B to port A, the check valve is closed and the oil needs to flow through the throttle port.
Throttle adjustment controls the flow rate of the hydraulic cylinder speed or system pressure by adjusting the opening of the throttle port and controlling the flow rate of the reverse flow.
IV. Application areas
Industrial automation: hydraulic system used for machine tools, injection molding machines, die-casting machines and other equipment.
Construction machinery: Hydraulic control system suitable for excavators, cranes and other equipment.
Agricultural machinery: hydraulic drive system used for tractors, harvesters and other equipment.
Aerospace: Suitable for hydraulic control systems such as aircraft servo and landing gear.
5. Precautions for installation and use
Before installation, check to confirm that the product model and specifications are consistent with the system requirements.
Check the valve body surface for no scratches, burrs and other defects.
Installation requirements ensure that the installation surface is flat and free of impurities.
Use a torque wrench to tighten the bolts according to the specified torque to avoid being too tight or too loose.
Precautions for use to avoid system pressure exceeding product ratings.
Check the cleanliness of the oil regularly to prevent impurities from entering the valve body.
If abnormal noise or vibration is found, shut down and check immediately.
6. Maintenance and maintenance
Regularly check the sealing performance of the valve body. If leakage is found, replace the seal in time.
Clean the valve body surface to prevent oil stains from accumulation.
Lubrication requires the use of hydraulic oil that meets the system requirements and the oil is replaced regularly.
Storage conditions are stored in a dry and ventilated environment to avoid direct sunlight and corrosive gases.
7. Selection suggestions
Select the appropriate model according to system pressure, flow rate and media characteristics.
Considering installation space and system integration needs, the overlay design is preferred.
If there are special working conditions (such as high temperature and high pressure), special specifications can be customized.
With its compact structure, efficient control performance and wide applicability, the MSW-03 superimposed one-way throttle valve has become an indispensable key component in hydraulic systems. For further product details or selection guidance, please contact professional suppliers or manufacturers for technical support.
