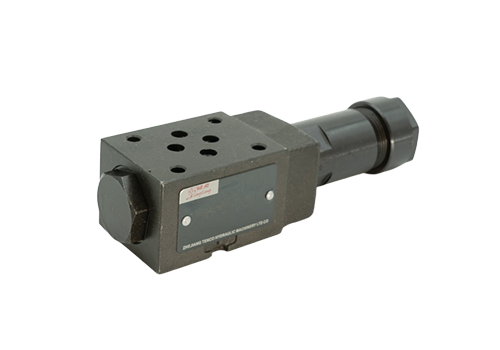

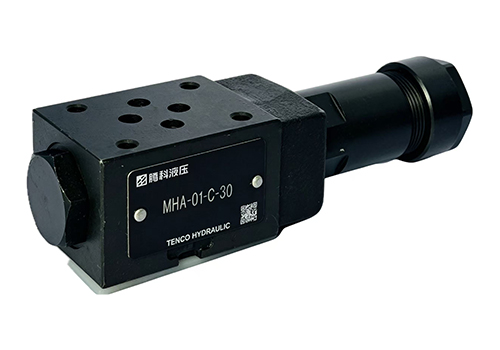

MHA Superimposed Balance Valve
MHA superimposed balance valve is a key control element used to regulate pressure and flow in hydraulic systems, and is widely used in engineering machinery, automobile manufacturing, aerospace and other fields. The following is a detailed introduction from the aspects of product characteristics, technical parameters, application fields, market conditions, etc.:
1. Product Features
The compact structure MHA superimposed balance valve adopts a modular design, and multiple functional modules can be freely combined to reduce pipeline connections, reduce leakage risks, and reduce system volume and weight.
Typical products such as MHA-03 series, the working pressure can reach 35MPa and the flow rate is 120L/min, meeting the needs of high-voltage and large-flow conditions.
The performance is stable and the pilot control principle is adopted to achieve accurate pressure and flow control and ensure stable operation of the system.
It has high-precision pressure control capabilities, the working pressure range of typical products is 0-350bar, the rated displacement is 25L/min, and the applicable temperature range is wide (-20℃ to +70℃).
Energy-saving and environmentally friendly automatically adjusts pressure and flow according to load changes, avoids energy waste, reduces noise, and extends the system life.
In line with the national energy conservation and emission reduction policy orientation, the application of new materials will further reduce energy consumption.
The superimposed design makes the installation process simple, no complex pipeline connections are required, and the maintenance cost is low.
2. Technical parameters
Model examples: MHA-03-C-20, MHA-03-N-20, etc.
Nominal diameter: 6mm, 10mm, 16mm, 25mm, etc.
Media temperature: -20℃ to +70℃
Connection form: threaded connection, quick loading, etc.
Drive mode: hydraulic drive
III. Application areas
Construction machinery is widely used in hydraulic control systems of heavy machinery such as excavators and cranes to ensure system stability and safety.
Automobile manufacturing is used for automated assembly equipment on production lines to improve production efficiency and accuracy.
Aerospace plays a key role in the hydraulic systems of aircraft and spacecraft, meeting the requirements of high precision and high reliability.
Other fields include petrochemicals, electricity and energy, metallurgy, agricultural machinery, etc., to meet the needs of different working conditions.
