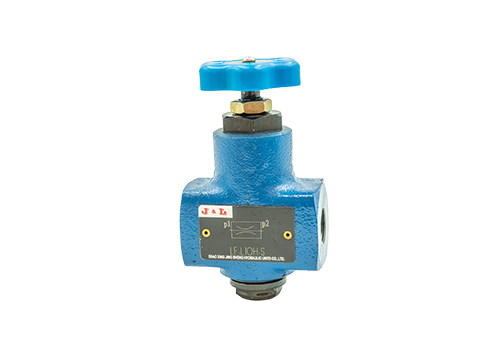

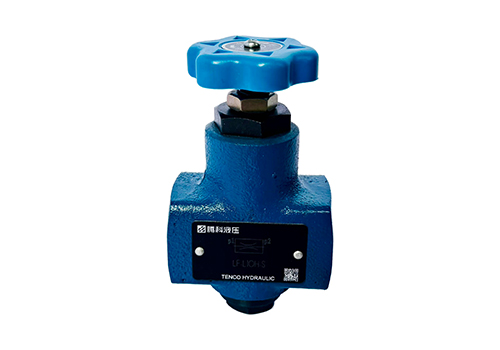

LF-L10H-S throttle valve
LF-L10H-S throttle valve is a commonly used flow control valve in hydraulic systems. The following introduces its function, structure, technical parameters, and application scenarios:
function and structure
The LF-L10H-S throttle valve is a simple flow control valve that changes the flow rate by adjusting the overcurrent area of the throttle gap, thereby controlling the working speed of actuators such as oil cylinders and oil motors. The one-way throttle valve version achieves throttling function when the oil flows in the forward direction, and when it flows in the reverse direction, the valve core is pushed by oil pressure to form a large channel, avoiding throttling effect.
Technical Parameter
Nominal diameter: 10mm
Rated flow rate: 40L/min
Nominal pressure: 31.5MPa
Connection form: threaded connection
Drive mode: manual adjustment
Material: Cast Iron
Weight: Approximately 1.2kg
Working temperature: room temperature
Standard: National Standard
Application scenarios
This throttle valve is suitable for scenarios in hydraulic systems that require precise flow control, such as construction machinery, machine tool hydraulic systems, and automation equipment. Its compact structure and simple operation characteristics make it a reliable choice for regulating flow in general oil circuit, especially suitable for occasions with low requirements for pressure or temperature compensation.
