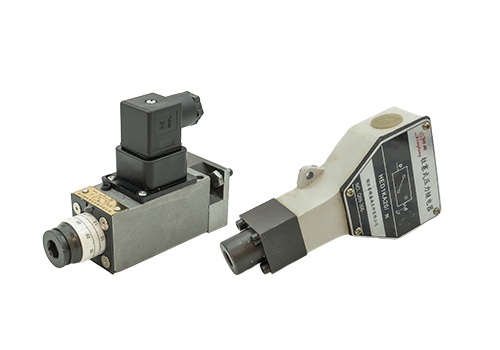

HED1 HED4 Pressure Relay
HED1 and HED4 pressure relays are commonly used pressure control components in hydraulic systems. The following is a detailed introduction from the aspects of product overview, technical parameters, application characteristics, etc.:
1. Product Overview

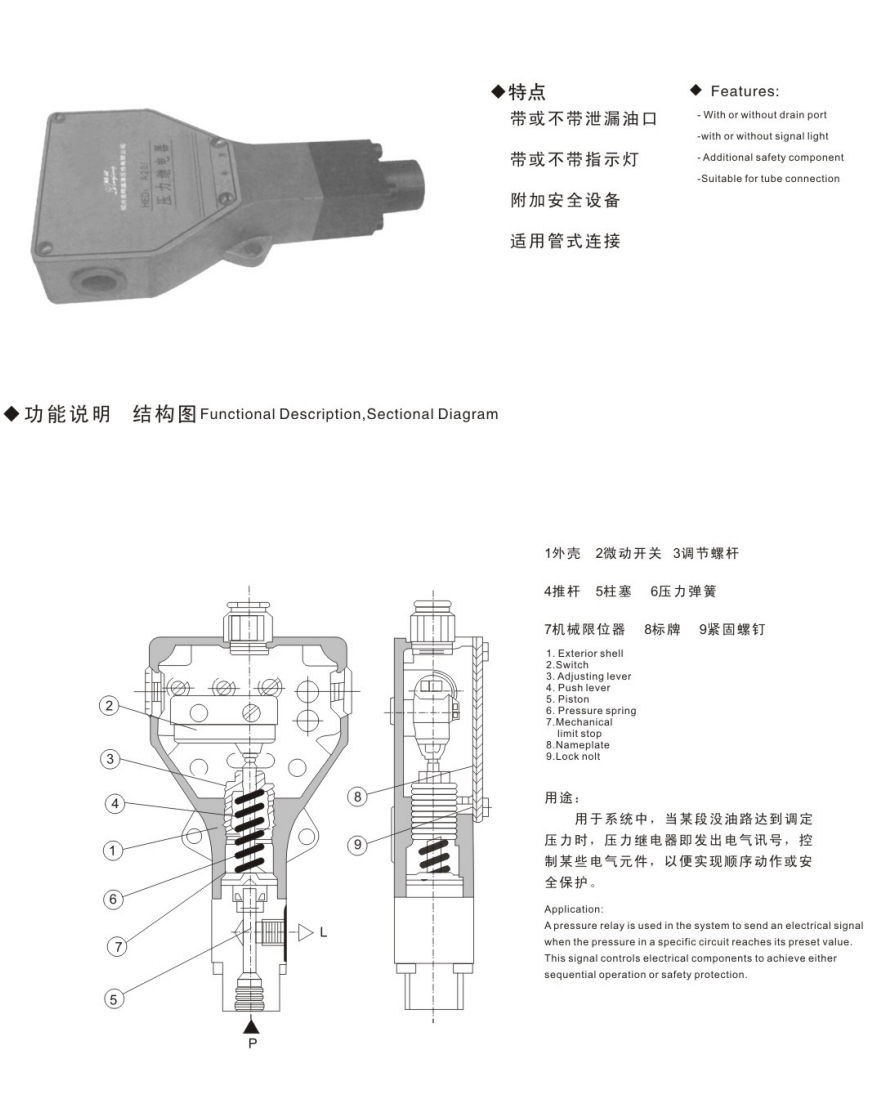

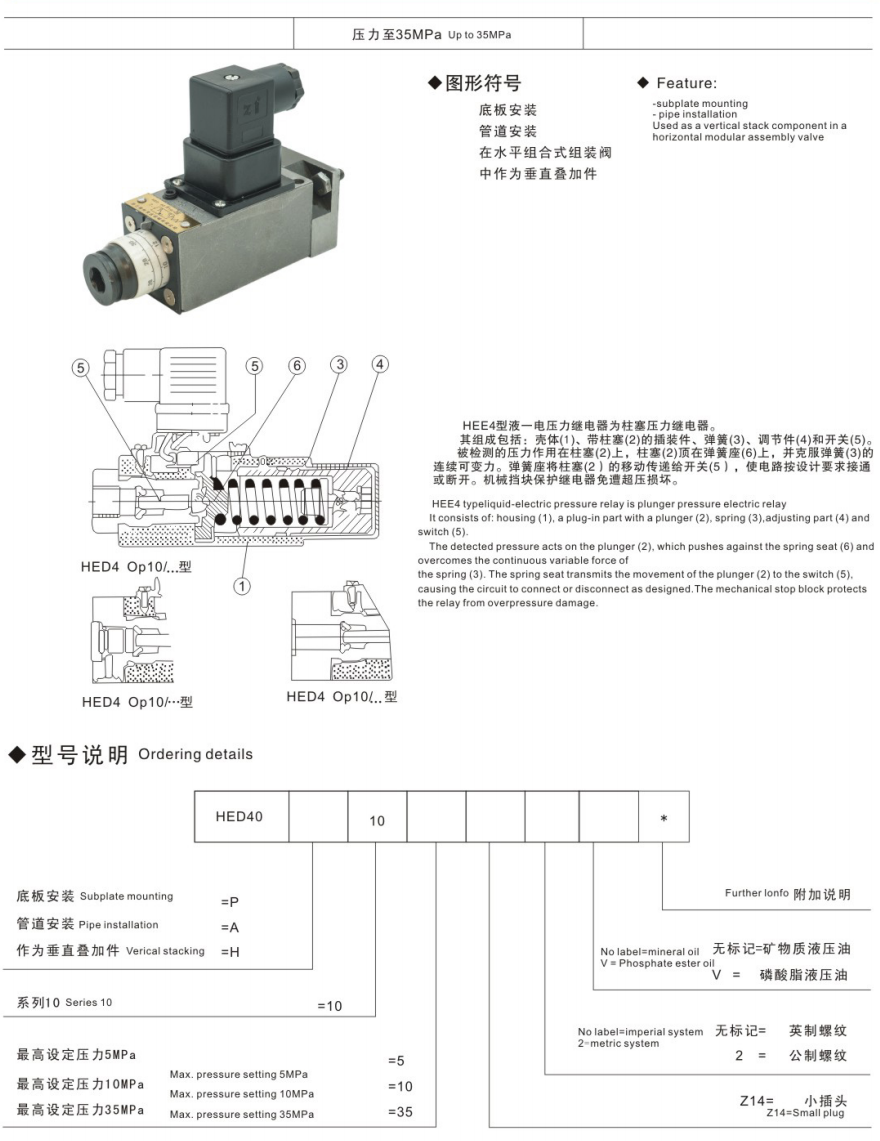

Both HED1 and HED4 pressure relays are plunger-type pressure relays, which are used to convert oil and hydraulic pressure signals in the hydraulic system into electrical signals to control the actions of electrical components such as electromagnets, electromagnetic clutches, relays, etc., and realize the sequential action or safety protection functions of the hydraulic system. When the system pressure reaches the set value, the pressure relay sends an electrical signal to control the action of the relevant components to relieve pressure, reversal or stop working of the oil circuit.
2. Application features
High reliability: HED1 and HED4 pressure relays are both made of high-quality materials and advanced processes, with high reliability and long life.
High sensitivity: The plunger-type design makes the pressure relay sensitive to pressure changes and can send out electrical signals in a timely manner to control the operation of the hydraulic system.
Convenient adjustment: By adjusting the compression amount of the internal spring, the operating pressure of the relay can be easily changed to meet the pressure control needs of different hydraulic systems.
Wide scope of application: It is suitable for various hydraulic systems, such as engineering machinery, metallurgical equipment, ship machinery, etc., to realize the sequential action and safety protection functions of hydraulic systems.
