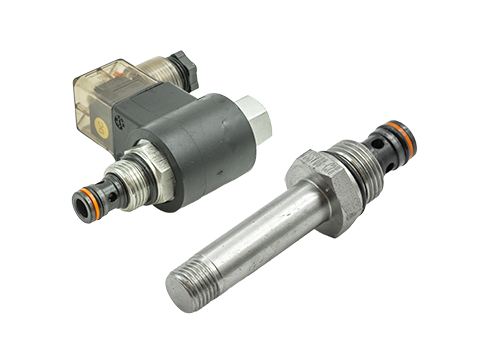

DASV Solenoid Plug-in Valve
DASV solenoid plug-in valve is a high-performance hydraulic thread plug-in valve under the DUNAN brand. It is widely used in industrial hydraulic systems and has the characteristics of compact structure, diverse functions and convenient installation. Here is a detailed introduction to it:
1. Product Features
The structure is compact and threaded insert design is small in size, suitable for installation environments with limited space.
The valve core and valve seat are made of hardened steel to ensure long life and low leakage (leakage is usually ≤0.25ml/min).
It has various functions, including direction control, flow regulation, pressure control, etc., to meet the needs of complex hydraulic systems.
It can be used in combination with ordinary hydraulic control valves to expand system functions.
The threaded interface design is convenient for installation, the installation process is simple and fast, reducing installation time and cost.
Modular design for easy maintenance and replacement.
The high-reliability electromagnetic coil is insulated with F or H grade, and has a temperature resistance of up to 155℃-180℃, adapting to harsh working conditions.
The protection level can reach IP65, IP67 or even IP69K, and it has excellent dust and waterproof performance.
2. Technical parameters
Model examples: DASV08-20, DASV10-20, DASV08-C28, DASV08-29, etc.
Diameter range: covers a variety of specifications, such as 8mm (08 series), 10mm (10 series), etc.
Working pressure: It can withstand high pressure (such as 420bar, 630bar, etc.) depending on the model.
Traffic range: Meet different traffic needs and ensure efficient operation of the system.
Applicable medium: mainly used for oil medium and compatible with a variety of hydraulic oils.
III. Application areas
Construction machinery: hydraulic systems for equipment such as excavators, loaders, cranes, etc.
Agricultural machinery: hydraulic control of agricultural equipment such as tractors and harvesters.
Industrial equipment: hydraulic transmission of industrial automation equipment such as injection molding machines, die casting machines, machine tools, etc.
Other fields: hydraulic systems in the ship, mining, metallurgy and other industries.
4. Purchase suggestions
Clarify the needs: select the appropriate model and specifications based on the system pressure, flow rate, medium and other parameters.
Focus on brands: Choose well-known brand products to ensure quality and after-sales service.
Consider installation: Choose the appropriate type of cartridge valve according to the installation space and method.
Understand performance: Pay attention to product sealing, durability, response speed and other performance indicators.
