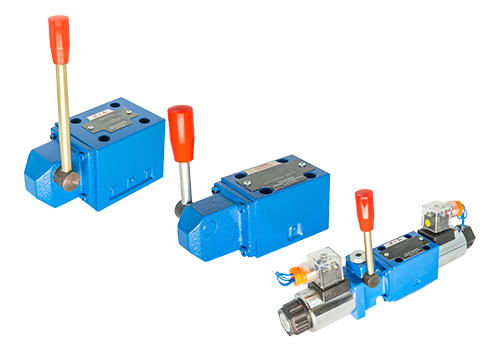

4WMM6 4WEMM6 4WMM10 Manual Reversing Valve
4WMM6 series model examples: 4WMM6E, 4WMM6G, 4WMM6H, etc.
Features: Direct-moving slide valve structure, the valve core is directly operated through the handle.
Suitable for small and medium hydraulic systems, the flow range is usually 60-300 L/min.
Optional return spring or positioner to ensure the stability of the valve core.
A damper can be plugged in to optimize switching performance.
4WEMM6 series model example: 4WEMM6E/D12V, 4WEMM6E/D24V
Features: Electromagnetic and manual composite control, supporting electromagnetic drive and manual emergency operations.
The solenoid valve part responds quickly and is suitable for working conditions that require quick switching.
The manual section ensures that safe operation is still possible in the event of electromagnetic failure.
4WMM10 series model examples: 4WMM10E, 4WMM10G, 4WMM10J
Features: Suitable for medium and large hydraulic systems, the flow range is usually 100-600 L/min.
The valve body structure is strengthened, the pressure resistance is higher, and it is suitable for high-pressure working conditions.
Various control methods can be selected, such as spring reset, hydraulic locking, etc.
4WMM6 series model examples: 4WMM6E, 4WMM6G, 4WMM6H, etc.
Features: Direct-moving slide valve structure, the valve core is directly operated through the handle.
Suitable for small and medium hydraulic systems, the flow range is usually 60-300 L/min.
Optional return spring or positioner to ensure the stability of the valve core.
A damper can be plugged in to optimize switching performance.
4WEMM6 series model example: 4WEMM6E/D12V, 4WEMM6E/D24V
Features: Electromagnetic and manual composite control, supporting electromagnetic drive and manual emergency operations.
The solenoid valve part responds quickly and is suitable for working conditions that require quick switching.
The manual section ensures that safe operation is still possible in the event of electromagnetic failure.
4WMM10 series model examples: 4WMM10E, 4WMM10G, 4WMM10J
Features: Suitable for medium and large hydraulic systems, the flow range is usually 100-600 L/min.
The valve body structure is strengthened, the pressure resistance is higher, and it is suitable for high-pressure working conditions.
Various control methods can be selected, such as spring reset, hydraulic locking, etc.
