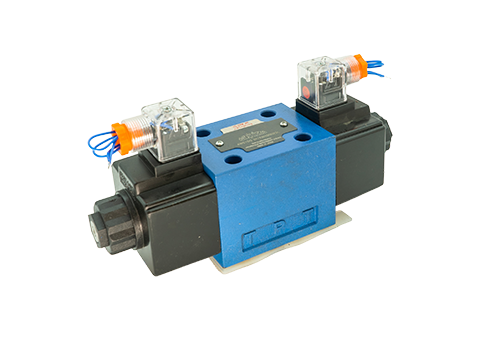

4WE10-AC220V Solenoid Reversing Valve
4WE10-AC220V solenoid reversing valve is a control component widely used in industrial hydraulic systems. Its core parameters and functional characteristics are as follows:
1. Core parameters
Model definition 4WE10: Solenoid reversing valve series with 4 diameter and wet solenoid structure, with a diameter of 10mm (NG10).
AC220V: The working voltage of the solenoid is 220V AC, suitable for standard industrial power supplies.
Single head/double head: optional single head (one side electromagnet) or double head (two sides electromagnet) configuration to meet different control needs.
Key performance indicators flow: The flow rate can reach 140L/min (depend on the model), adapting to large-flow hydraulic systems.
Peak pressure: Can withstand brief overpressure to 350 bar.
Working temperature: -30℃ to +80℃ (hydraulic oil medium), adapting to harsh working conditions.
Electrical characteristics: Power consumption: ≤60W (AC 220V);
2. Functional characteristics
Wet electromagnet design The interior of the electromagnet is completely closed, and the armature moves in hydraulic oil, reducing wear and impact and extending service life.
Excellent heat dissipation performance and adapt to high-frequency action needs.
The high circulation capacity adopts cast inner channels, and the pressure loss is reduced, and the circulation capacity is nearly twice as high as similar products (up to 140L/min).
The reset and safety mechanism is equipped with a reset spring, and the valve core will automatically return to the middle position after power is cut off;
An optional fault check button can be installed to manually push the valve core for functional verification;
Spool position monitoring function (optional) for greater safety.
The electrical connection method supports separate or centralized electrical connections and is compatible with multiple control systems;
The electromagnetic coil complies with UL 906 certification and passes CE standard (Low Voltage Directive 2014/35/EU).
Installation and compatible board installation, compliant with ISO 4401-03-02-0-05 standard, compatible with DIN24340 connection size;
Manual emergency operation device is optional to ensure that the valve can still be switched when there is no magnet for power supply.
III. Application scenarios
Construction machinery: Control the expansion and contraction of hydraulic cylinders to realize the action switching of excavators, cranes and other equipment.
Industrial automation: used in production line hydraulic systems, precisely controlling the start and stop and direction of cylinders or hydraulic motors.
Agricultural machinery: Adjust the hydraulic oil circuit to realize the lifting and steering of agricultural tools such as tractors and harvesters.
Environmental protection equipment: In sewage treatment and waste gas treatment projects, control the flow direction and flow of fluid.
4. Technical advantages
High reliability wet electromagnet design with a lifespan of millions of actions;
Comply with ISO 4401-03-02-0-05 port mode, with high compatibility.
Flexible control provides 4/3-, 4/2- or 3/2-way versions to meet different needs;
Optional valve core position monitoring function to ensure system safety.
Easy to maintain the electromagnetic coil that can rotate 90°, and there is no need to open the pressure-resistant sealed cavity when replacing the coil;
Manual emergency operation device for easy debugging and repair.
4WE10-AC220V solenoid reversing valve is a control component widely used in industrial hydraulic systems. Its core parameters and functional characteristics are as follows:
1. Core parameters
Model definition 4WE10: Solenoid reversing valve series with 4 diameter and wet solenoid structure, with a diameter of 10mm (NG10).
AC220V: The working voltage of the solenoid is 220V AC, suitable for standard industrial power supplies.
Single head/double head: optional single head (one side electromagnet) or double head (two sides electromagnet) configuration to meet different control needs.
Key performance indicators flow: The flow rate can reach 140L/min (depend on the model), adapting to large-flow hydraulic systems.
Peak pressure: Can withstand brief overpressure to 350 bar.
Working temperature: -30℃ to +80℃ (hydraulic oil medium), adapting to harsh working conditions.
Electrical characteristics: Power consumption: ≤60W (AC 220V);
2. Functional characteristics
Wet electromagnet design The interior of the electromagnet is completely closed, and the armature moves in hydraulic oil, reducing wear and impact and extending service life.
Excellent heat dissipation performance and adapt to high-frequency action needs.
The high circulation capacity adopts cast inner channels, and the pressure loss is reduced, and the circulation capacity is nearly twice as high as similar products (up to 140L/min).
The reset and safety mechanism is equipped with a reset spring, and the valve core will automatically return to the middle position after power is cut off;
An optional fault check button can be installed to manually push the valve core for functional verification;
Spool position monitoring function (optional) for greater safety.
The electrical connection method supports separate or centralized electrical connections and is compatible with multiple control systems;
The electromagnetic coil complies with UL 906 certification and passes CE standard (Low Voltage Directive 2014/35/EU).
Installation and compatible board installation, compliant with ISO 4401-03-02-0-05 standard, compatible with DIN24340 connection size;
Manual emergency operation device is optional to ensure that the valve can still be switched when there is no magnet for power supply.
III. Application scenarios
Construction machinery: Control the expansion and contraction of hydraulic cylinders to realize the action switching of excavators, cranes and other equipment.
Industrial automation: used in production line hydraulic systems, precisely controlling the start and stop and direction of cylinders or hydraulic motors.
Agricultural machinery: Adjust the hydraulic oil circuit to realize the lifting and steering of agricultural tools such as tractors and harvesters.
Environmental protection equipment: In sewage treatment and waste gas treatment projects, control the flow direction and flow of fluid.
4. Technical advantages
High reliability wet electromagnet design with a lifespan of millions of actions;
Comply with ISO 4401-03-02-0-05 port mode, with high compatibility.
Flexible control provides 4/3-, 4/2- or 3/2-way versions to meet different needs;
Optional valve core position monitoring function to ensure system safety.
Easy to maintain the electromagnetic coil that can rotate 90°, and there is no need to open the pressure-resistant sealed cavity when replacing the coil;
Manual emergency operation device for easy debugging and repair.
